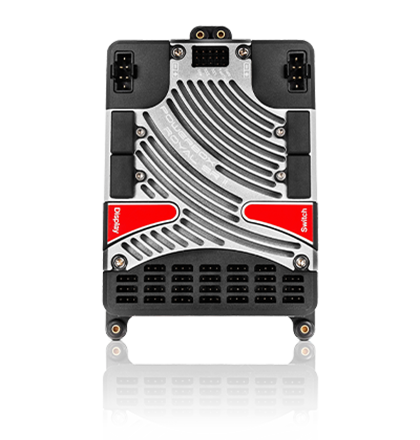

PowerBox Royal SR2
Fetures:
26 channels
High-performance battery backer with high continuous load capacity
Four P²-BUS outputs with full telemetry support for servos
2.4" TFT screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 26 outputs
Auto matching function
Two independent door sequencers with Setup Assistant
The latest integrated iGyro technology, using the iGyro SAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
Individual gain control for all twelve gyro outputs
Special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
Two different voltage levels, separately adjustable for left and right side Graphic menu diagrams ensure ultra-simple programming
Fast basic setup procedure using the sophisticated Assistant
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR DMSS and Graupner HoTT
Transmission of battery, receiver and GPS data
Virtually all features can be controlled from PowerBox and Jeti transmitters
Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
Latest 32-bit micro-processor for precise, high-speed signal processing
High-performance machined heat-sink for optimised heat diffusion
Machined, anodised aluminium switch and screen case
Compact dimension
